Thermal Imaging Camera for Water Pipe Leak and Power Electrical

$569.99 USD

Sale Sold out

Color HT-18 Plus

Quantity

Product Description

Infrared thermal imager that can blend the visible and infrared image

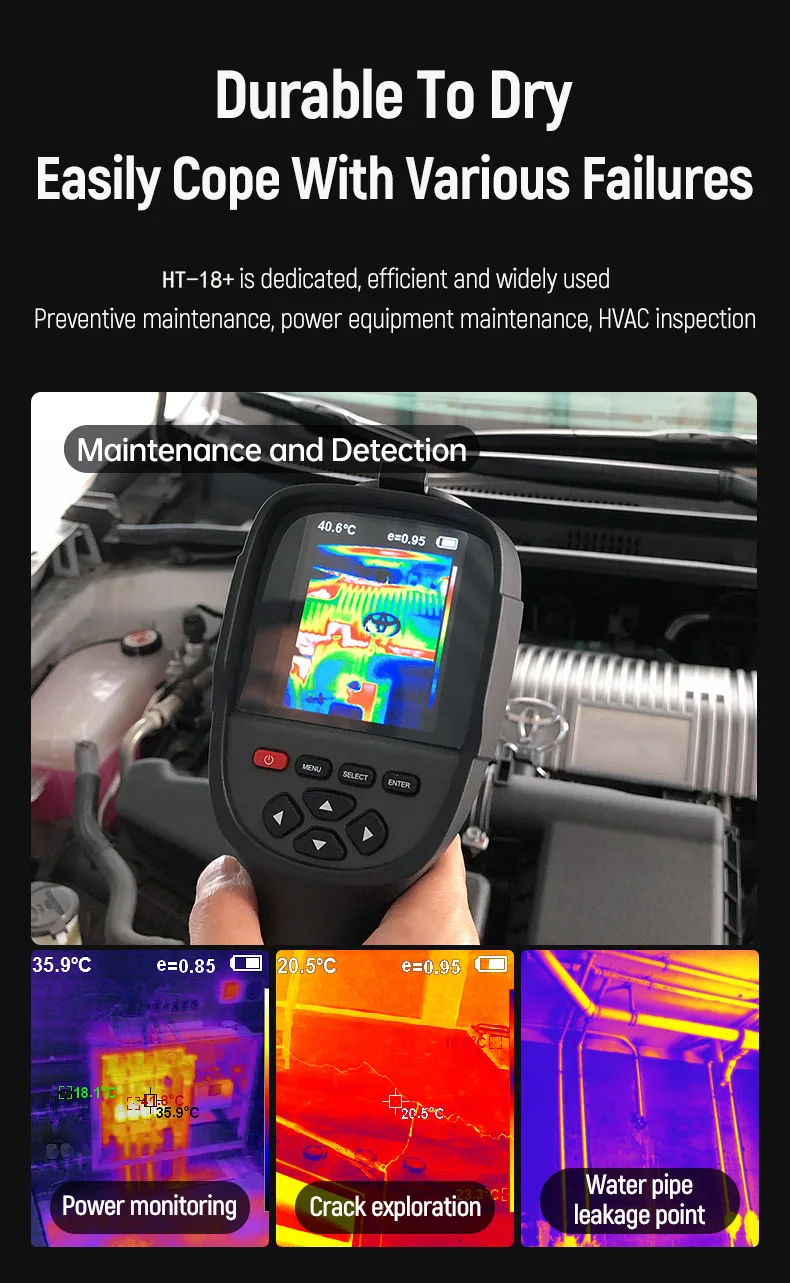

For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.

It can turn thermal image into visional image, quickly find out the problem area.

Features

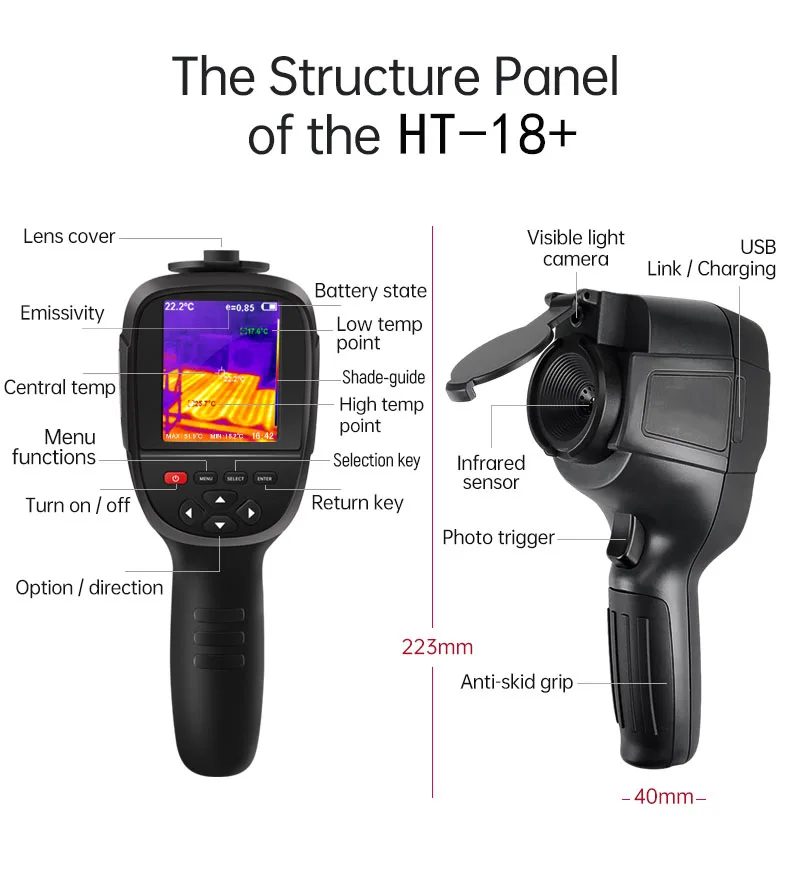

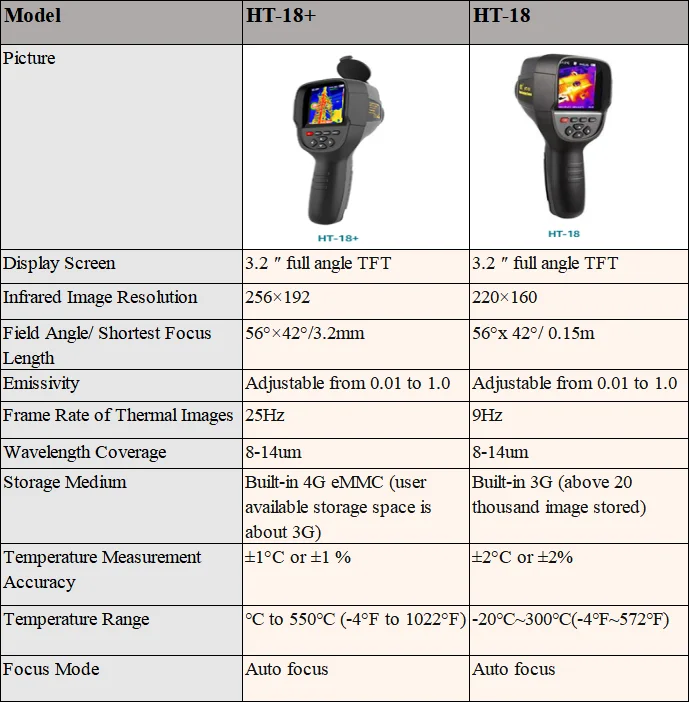

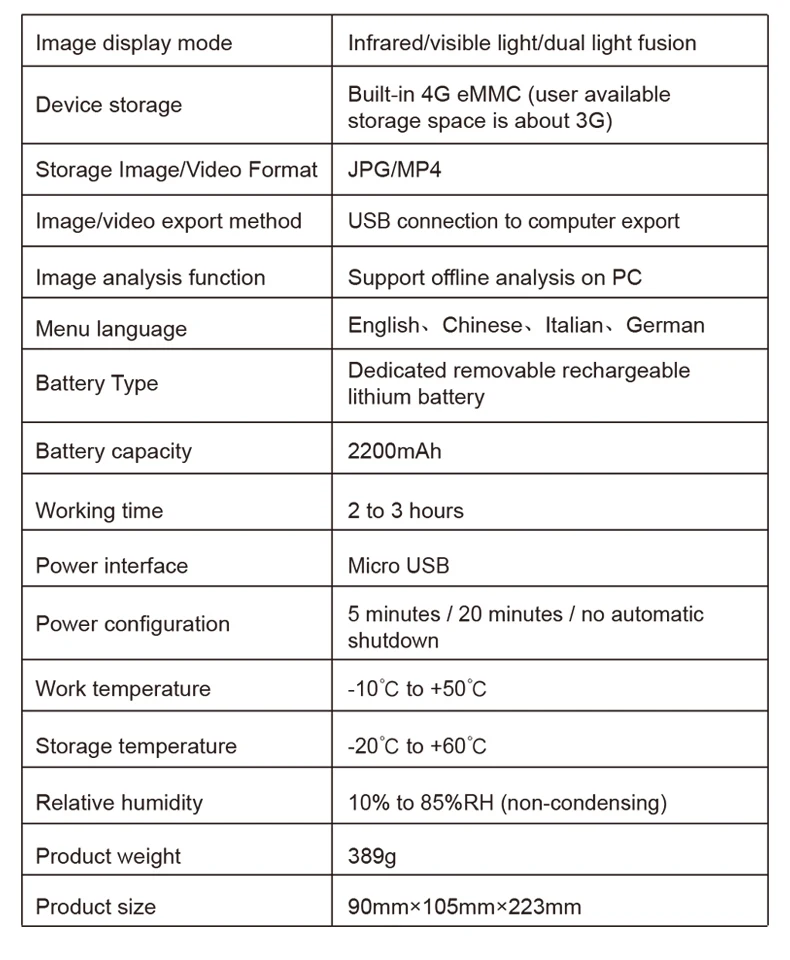

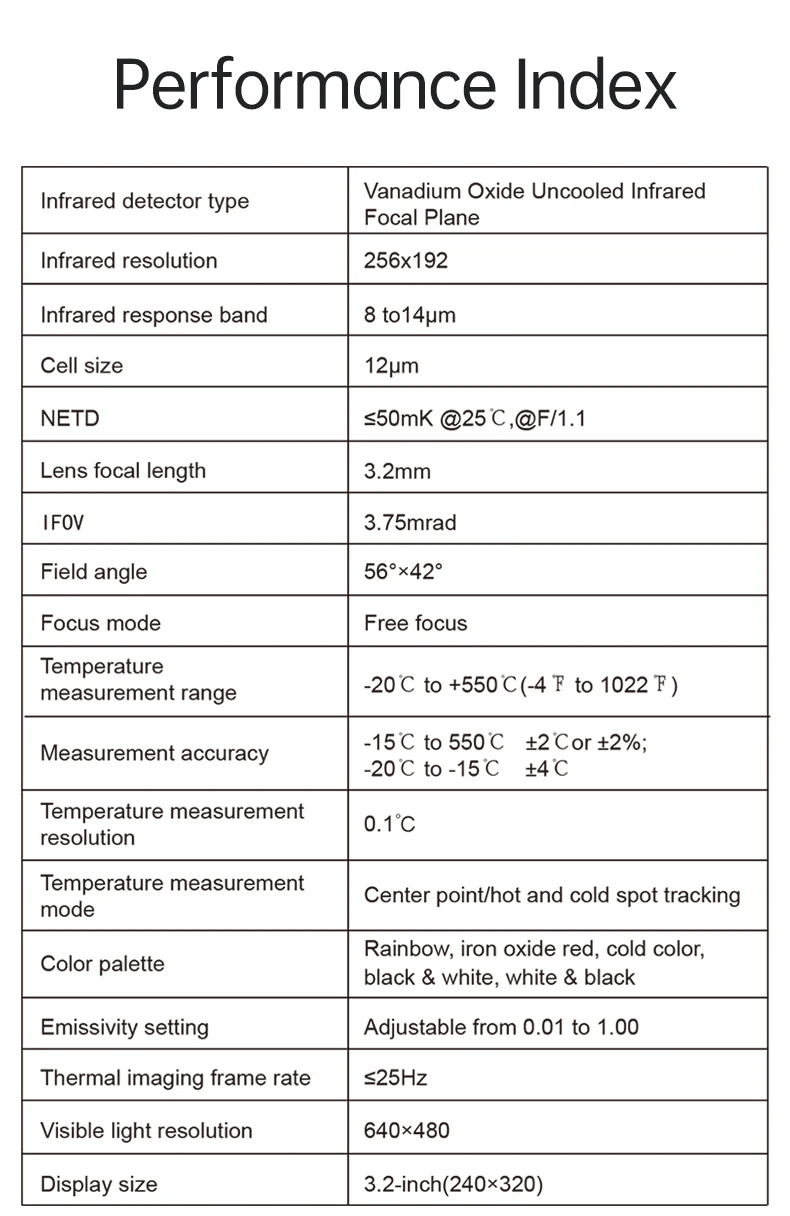

1. Model: HT-18+/ GW256 [Please note HT-18 Plus = GOYOJO GW256]

●Type: Handheld Thermal Imager

●Infrared Resolution: 256x192

●Visible image resolution: 640x480

●3.2inch Full angle TFT display screen

●Wavelength: 8-14μm

●Frame rate: 25Hz

●Emissivity: adjustable from 0.01 to 1

●Temperature range: -20℃ ~550℃

●Accuracy:±2℃ or ±2%

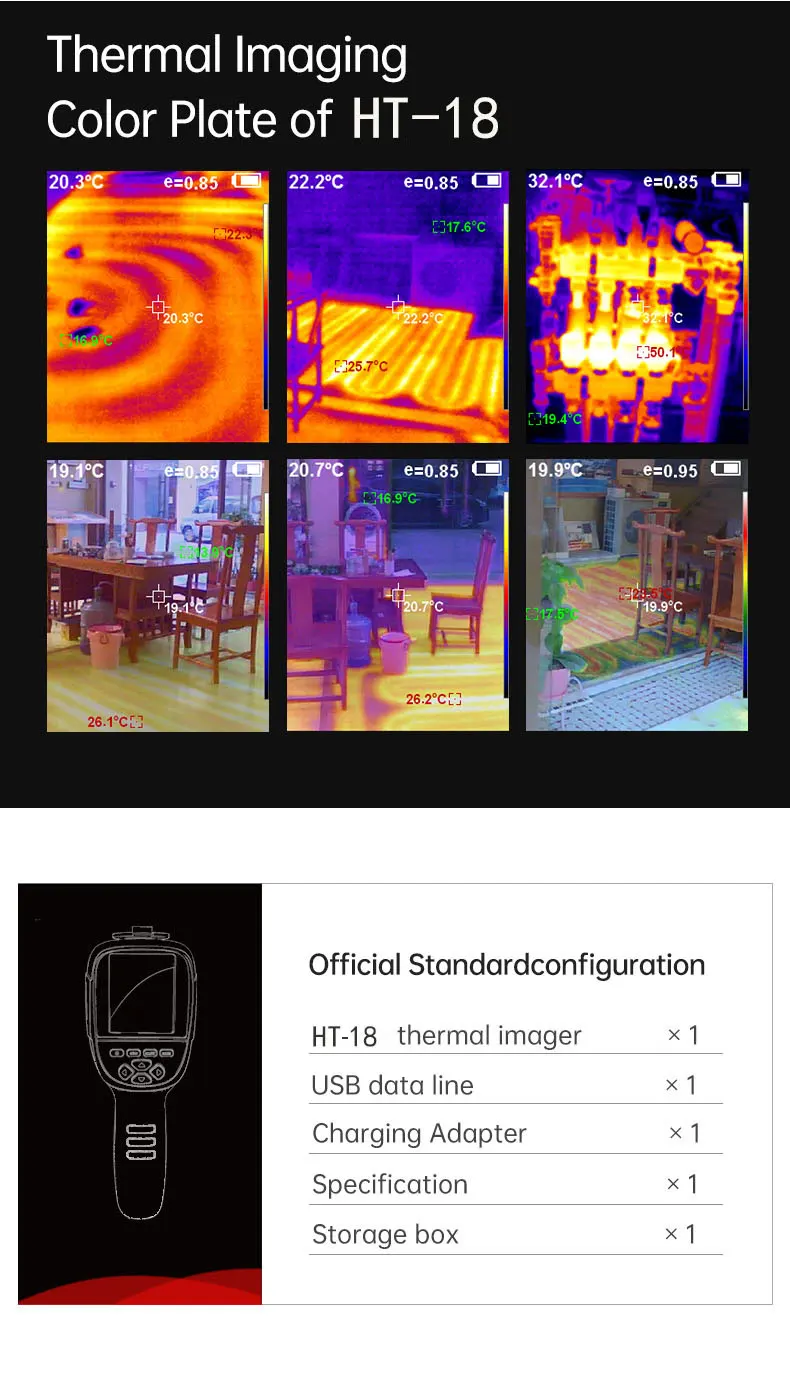

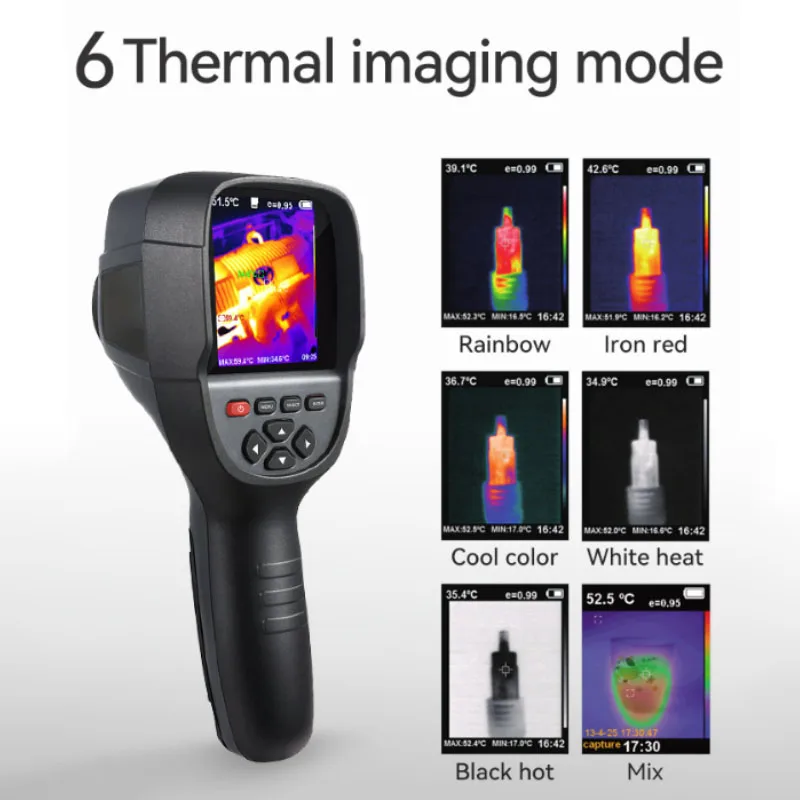

●Color palette: Rainbow, Iron red, Cool color, White hot, Black hot

●Software analysis &amp; Viedo: Support

●Working Time: 2-3 hours

●Product size: 90x105x223mm

Detailed Images

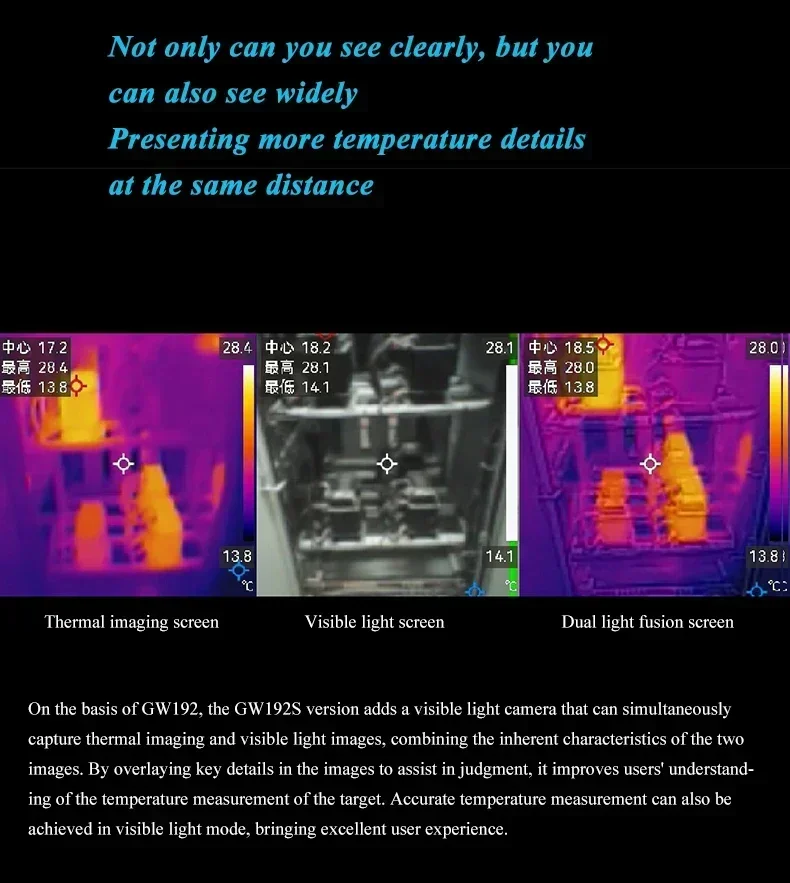

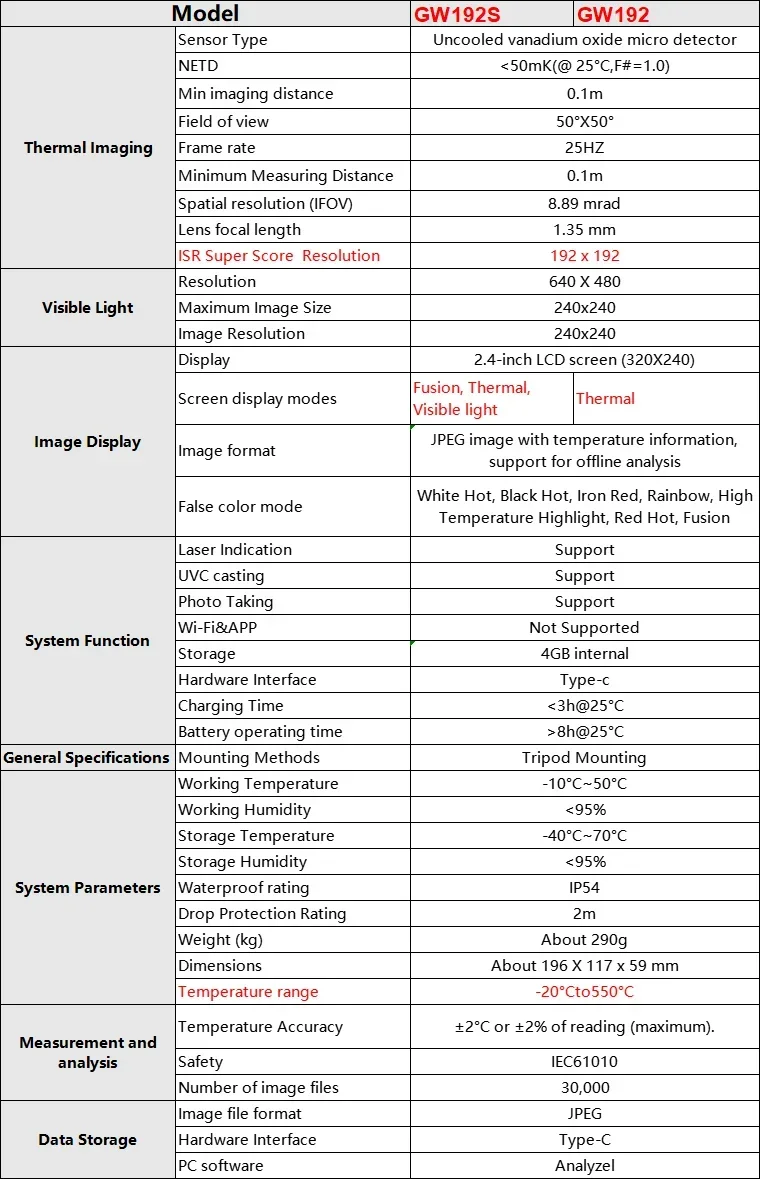

2. Model: GW192/GW192S

3. Model: HT-04D

Display	2.8 inch full angle TFT screen
Infrared imager resolution	160*120
Field angle/shortest focus length	35*26°/0.15m
Thermal sensitivity	0.07°C
Temperature measurement range	-20 to 450°C (-4°F to 842°F)
Measurement Accuracy	±2% or 2°C
Emissivity	0.1-0.99 adjustable
Frame rate of thermal image	9Hz
Walvelength coverage	8~14um
Focus mode	Fixed
Color palette	Rainbow,Iron oxide red,cold color,black&white,white &black
view option	The integration of thermal image with 25% step length and visible image
Storage medium	built-in 3G
File format	JPG
USB	Micro USB 2.0
Power supply	Built-in chargeable 18650 battery
Automatic power-off time	Selectable:5 minutes/20 minutes/not pwoer off automaticallly
Product size(lengthwidthheight)	96mm72mm226mm
Product Weight	389g
Work temperature	0°C to 45°C
Storage temperature	-20°C to 60°C
Relative Humidity	<85%RH
Waterproof Ability	IP54
