Industrial Thermal Imager
Industrial Thermal Imager
Couldn't load pickup availability
Features:

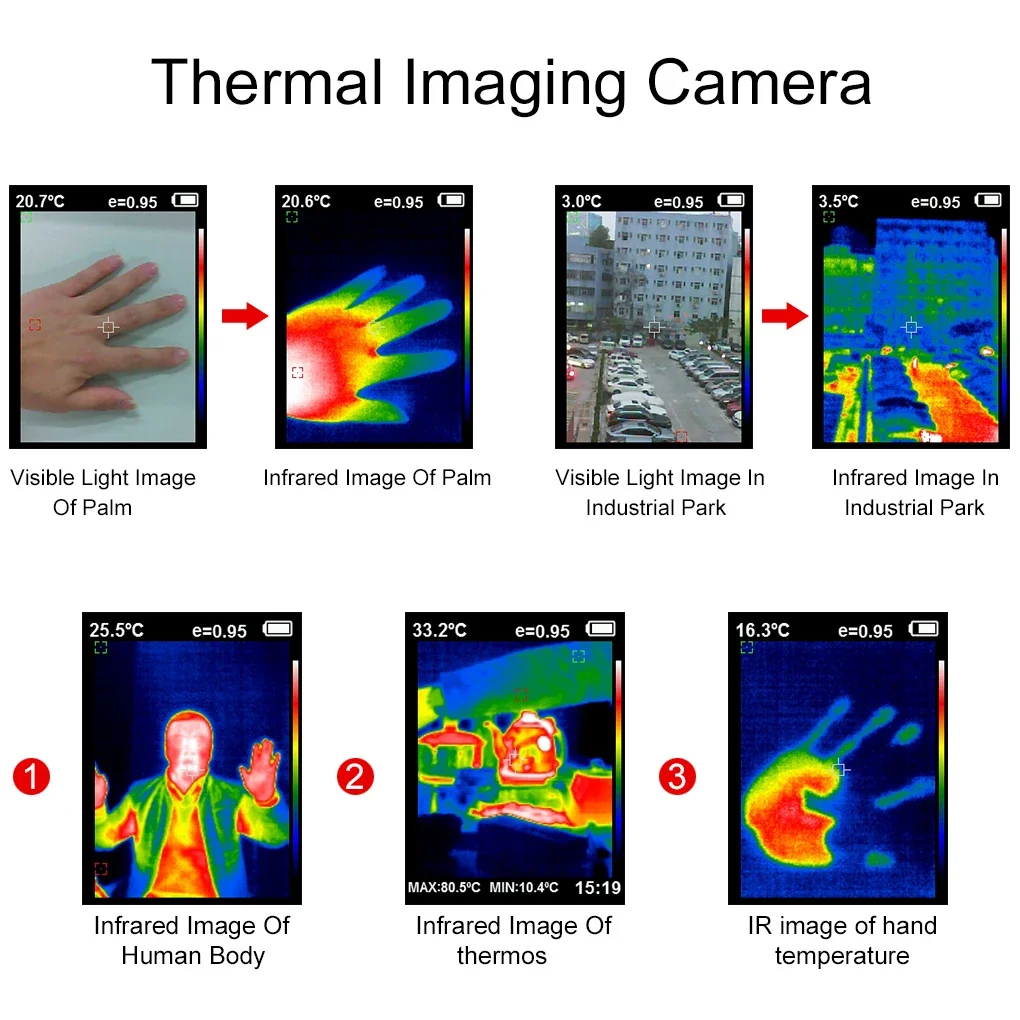

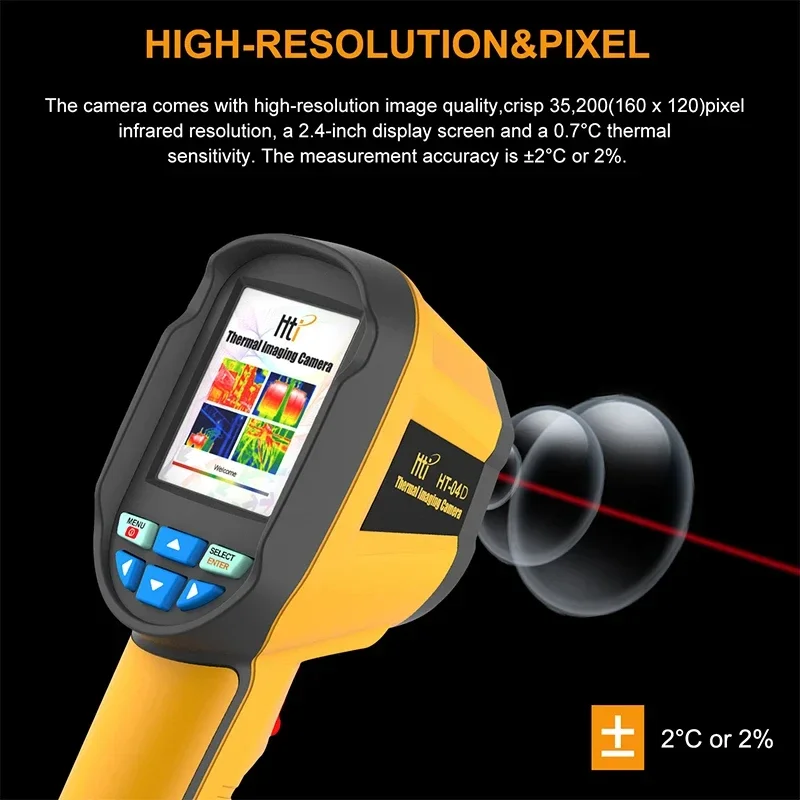

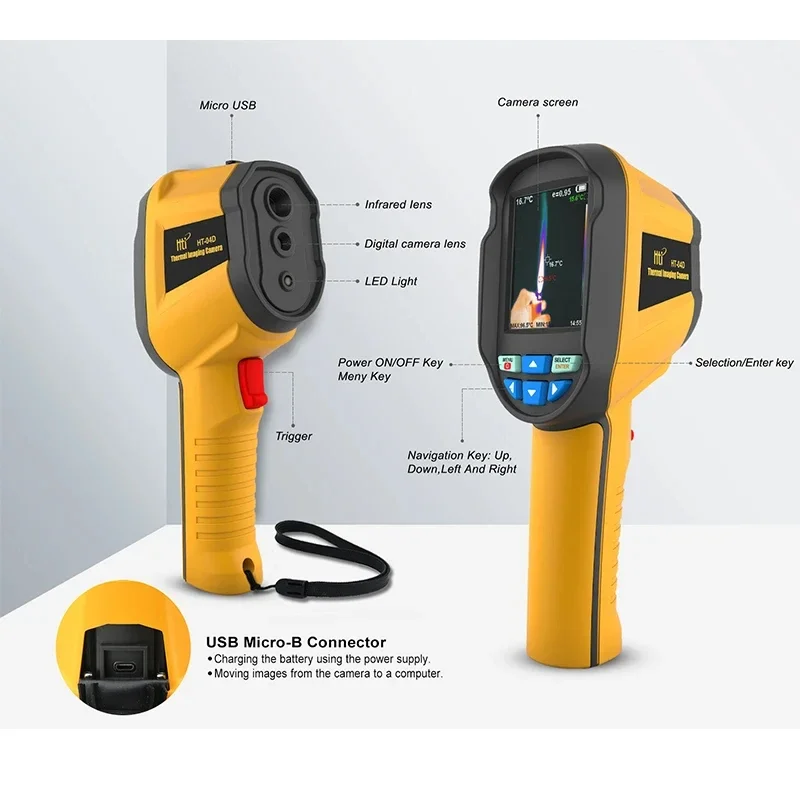

HT-04 is a Infrared camera that integrates surface temperature measurement and real-time thermal image.

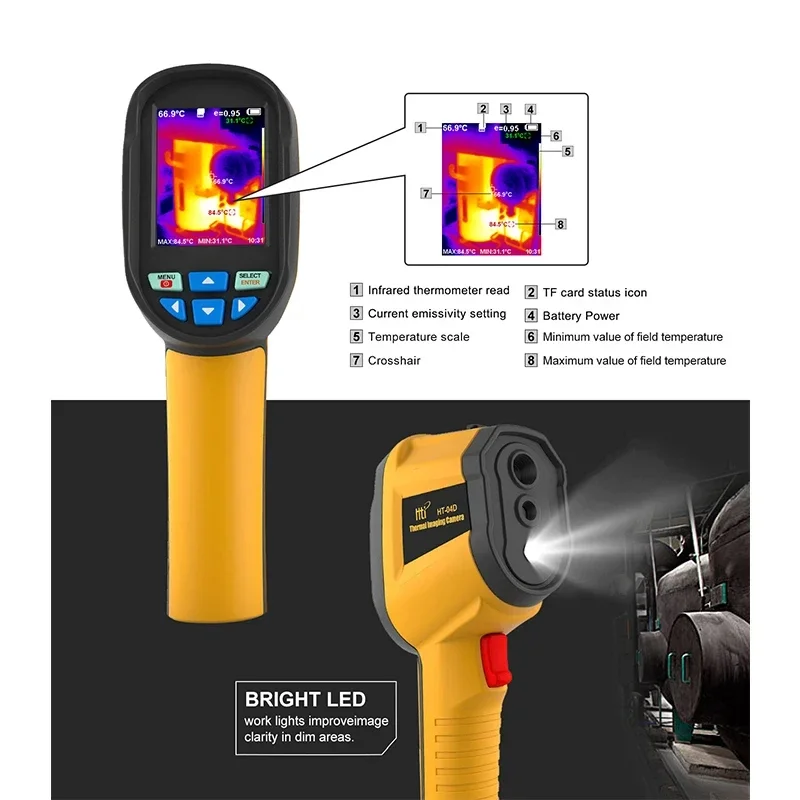

The potential problems may be displayed on color display screen clearly.
This is helpful for users to locate the measurement cursor of the central point quickly and measure the temperature.
Both thermal images and full vision images can be stored in the detachable memory card.

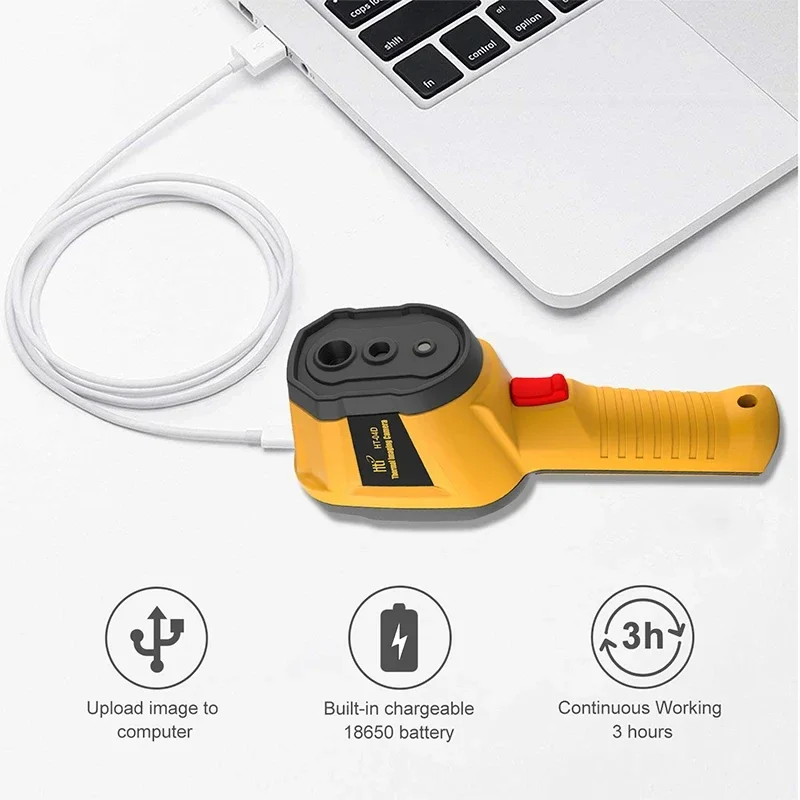

The image may be called or stored in PC to generate a report and print.
Description:
|
Product |
Thermal Imaging Camera |
|
Model |
HT-04D |
|
Display |
2.8" color display |
|
Resolution |
160*120 |
|
Total pixels |
19200 |
|
FOV/shortest focus length |
39°*31°/0.15m |
|
Thermal sensitivity |
0.07℃ |
|
Temperature measurement range |
-20°C~300°C(-4°F~572°F) |
|
Measurement accuracy |
±2%digital/±2°C |
|
Emissivity |
0.01 to 1.0 adjustable |
|
Frame rate of thermal image |
30Hz |
|
Wavelength coverage |
8-14um |
|
Focus mode |
Fixed |
|

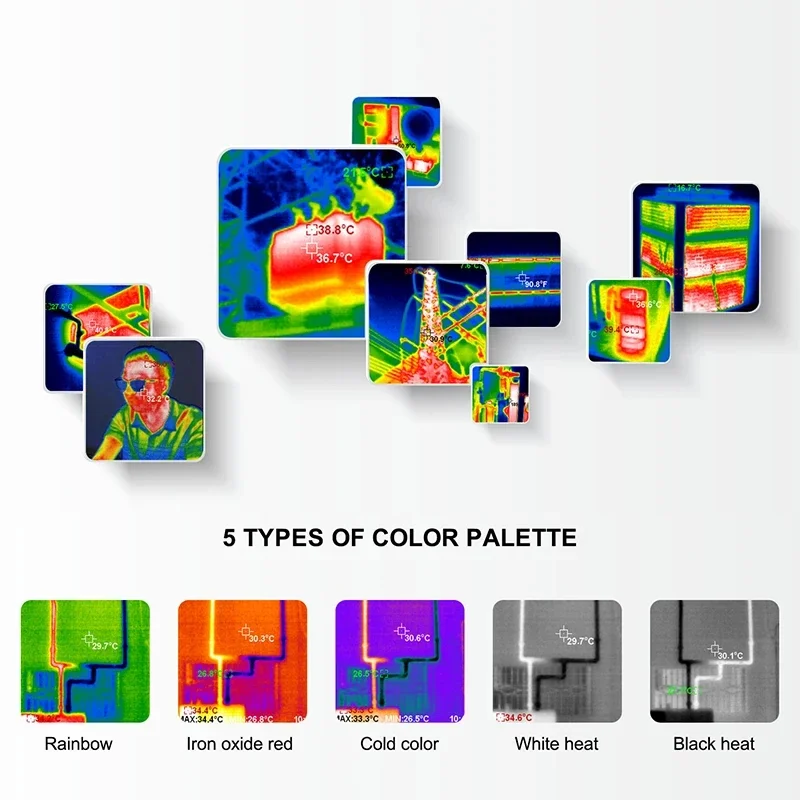

Palette |
iron oxide, rainbow, black and white |
|
Image Storage |
card (3G) |
|
File format |
JPG |
|
Set control |
unit adjustment/ Lanaguage/ date time |
|
Format/automatic shutdown |
|
|
Power supply |
Built-in chargeable 18650 battery |
|
Product size(length*width*heigth) |
226*91.5*71.6mm |
|
Product weight |
410g |
|
Operating temperature |
0℃ to 50℃ |
|
Storage temperature |
-20℃ to 60℃ |
|
Relative humidity |
<85%RH |
|
Vibration |
2G, IEC 60068-2-6 |
|
Waterproof rating |
IP54 |
Package included:
